WorldEdit Guide

By MARTIN Published | Last updated

WorldEdit is a powerful open source in-game map editor mod (and plugin). Players can transform large areas of terrain with just a few commands. This article will explain the basics of WorldEdit along with tips, tricks, and other resources to get the most out of it.

Note: Many WorldEdit commands use a double forward slash (//) prefix. This is different from regular Minecraft commands that only have one (/).

The Basics

//wand

Adds a wooden axe (unless otherwise defined in the configuration file) to your inventory used for marking positions that form a region for edits to affect.

Making a Selection

Left-click a block to set your first position, and right-click to set your second.

WorldEdit selection confirmation messages.

The two positions create a cuboid shape.

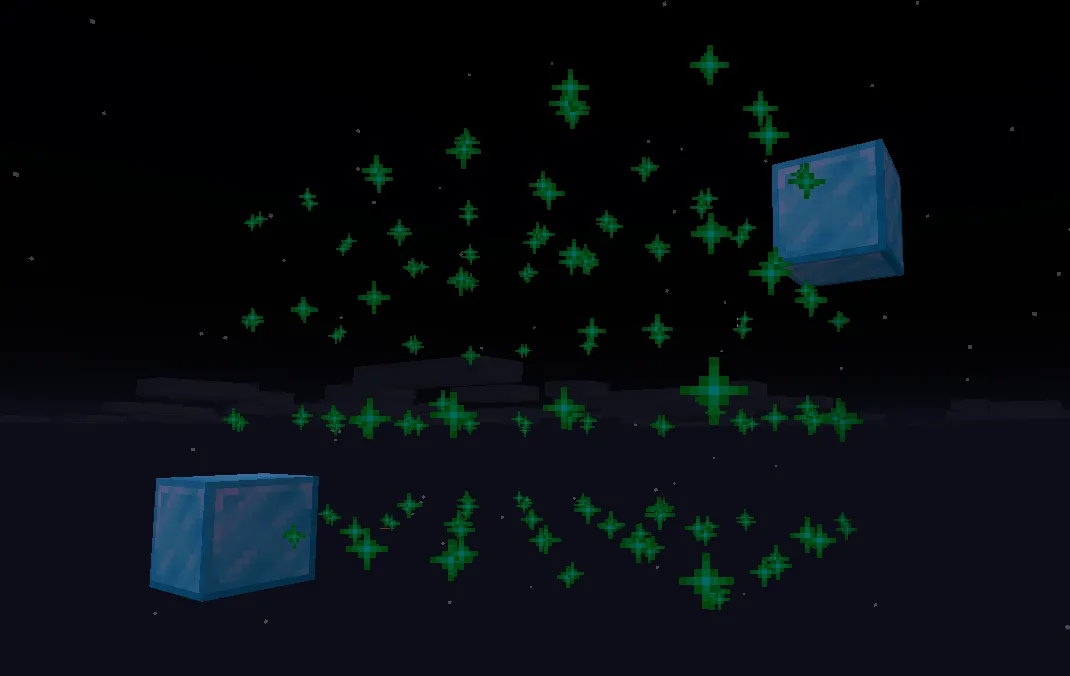

Visualized cuboid region selection.

Alternatively, //pos1 and //pos2 can be used to select region points from your character’s leg’s current location.

//hpos1 & //hpos2

Selects respective region points to the block your character’s head is looking.

//hpos1

Patterns

WorldEdit patterns are the instructions for how WorldEdit should generate blocks based on the command.

Single Block

stone_bricks

Multiple Blocks

stone_bricks,oak_planks

Ratioed

The % signs do not need to equal 100% as they are cumulative and divided by the total. The following example has a 3:4 ratio.

30%stone_bricks,40%oak_planks

With Block States

Each block state must be inside brackets and indicated with a name and value.

stone_slab[type=top]
oak_stairs[facing=north,half=top]

With Random Block States

Each position will have a random block states for that block.

*oak_log

Clipboard

The contents of your clipboard.

#clipboard

and more!

Region Operations

With Patterns

//set <pattern>

Completely fills selected region with pattern.

//set stone_bricks

//replace <new pattern>

Replaces all blocks in a selected region to new pattern.

//replace grass_block

//replace <original pattern> <new pattern>

Replaces all original pattern blocks in a selected region with new pattern.

//replace grass_block stone_bricks

//replacenear <radius> <mask> <pattern>

Replaces mask pattern in a radius of the player with new pattern.

//replacenear 2 grass_block acacia_log

//center <pattern>

Creates pattern at center of selcted region. Will be 1 block if odd on all sides, 2 if odd on one and even on the other, and 4 if even on all sides. Commonly used for determining the center of a region in general.

//center diamond_block

//overlay <pattern>

Finds the highest blocks in a selected region and places pattern on top.

//overlay 10%gold_ore,10%diamond_ore,80%iron_ore

//walls <pattern>

Builds walls from the top to the bottom of the outer selected region.

//walls stone

//outline <pattern>

Builds a box made of the pattern on the outer selected region.

//outline stone

Lines and Curves

//line <pattern> [thickness]

Creates a line from pos1 to pos2 when using //sel cuboid.

//line diamond_block 2

//curve [-h] <pattern> [thickness]

Creates a curved line from various points selected when using //sel convex.

//curve -h diamond_block 3

With Selections

//stack <count> <direction>

Repeats a selection for a number of times in a certain direction. If no direction is added, the closest player direction will be used.

//stack 5 up

Clipboard Operations

The clipboard is similar to that of a computer where you can cut, copy, and paste. Instead of text, you’re copying blocks and entities.

Copy and copy-like commands (i.e. cut) copy the region relative to your in-game position. In other words, where you stand when executing these commands will change where they are pasted later.

Basics

//copy

Copies everything in the selected region.

//copy

//cut

Copies everything in the selected region and then removes it.

//cut

//paste

Pastes your clipboard content.

//paste

Manipulating Clipboard Content

Once you have copied or cut content to your clipboard, you can then modify it before pasting.

//rotate <degrees>

Rotates in y-axis degrees.

//rotate 90

//flip [direction]

Flips clipboard to a direction like a mirror.

//flip down

History

//undo [# of steps]

Undo one edit, or multiple edits if a number is passed.

//undo

//redo [# of steps]

Redo one edit, or multiple edits if a number is passed.

//redo

//clearhistory

Wipes edit history. All previous //redo(s) and //undo(s) will no longer be available.

//clearhistory

Tools

Commands that can be bound to an item and activated upon clicking a block.

//tool tree <type>

Paste a vanilla-style tree where you click.

//tree cherry
